Documentation

Writing Custom Shaders

Every layer in Ghost Arcade can play a custom .fs fragment shader as its content source. Shaders are written in GLSL with the ISF (Interactive Shader Format) header on top, giving you a metadata block that tells the app what UI controls to build. This page covers the file format, the defensive-programming rules that every shipped shader follows, and how to get your shader into the library.

Developer Skill

shader-authoring.md

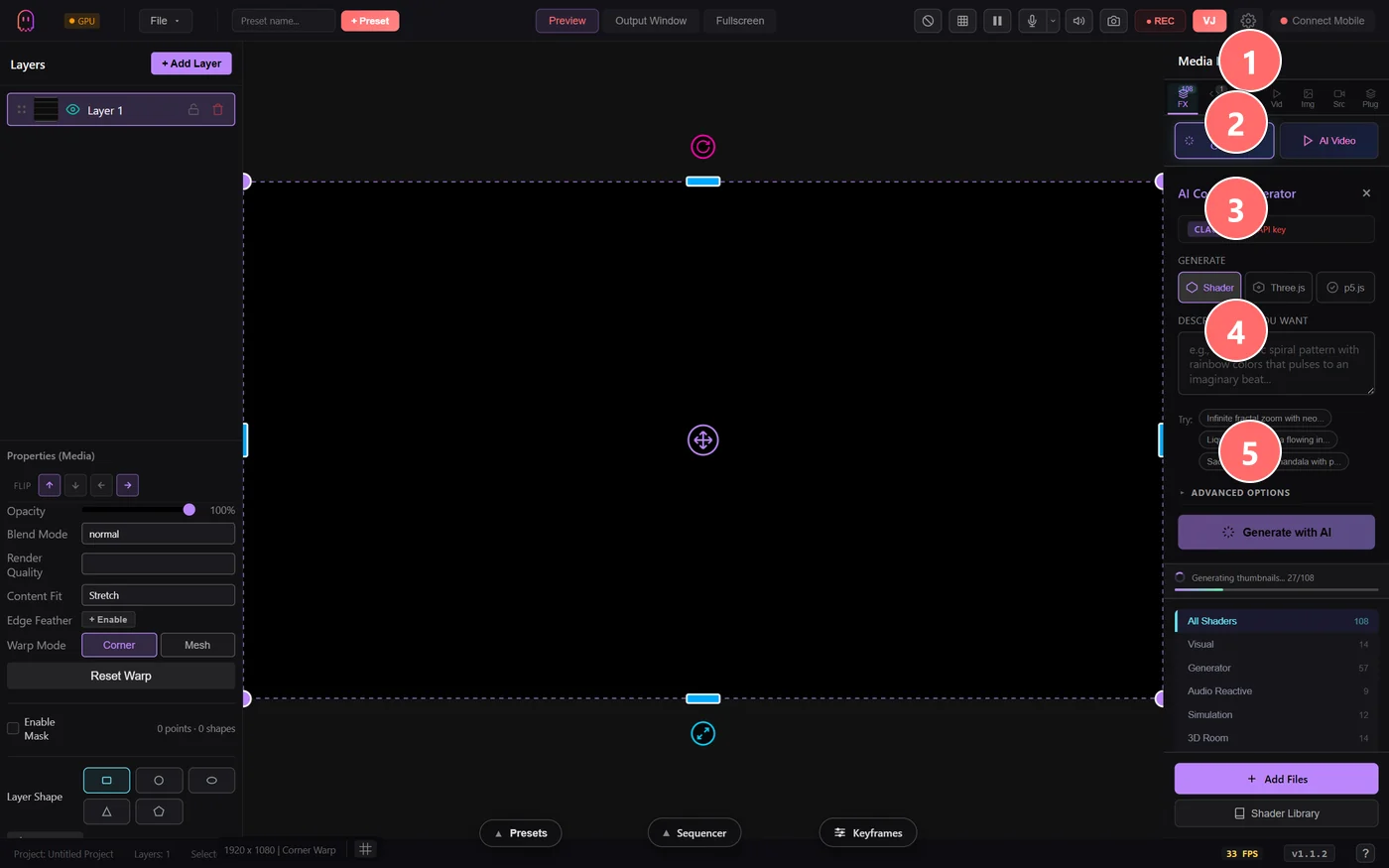

Hand this file to Claude or ChatGPT and it will write shaders that match our conventions — ISF header, audio uniforms, the seamless atan2 fix, performance budget, and a pre-ship checklist. Distilled from auditing every default shader we ship.

Download skill ↓

File format

A shader is a plain text file with the extension .fs. The first lines are a JSON metadata block inside a GLSL comment, followed by the fragment shader source. Drop the file into the app's shader library and the metadata becomes slider controls.

/*{
  "CREDIT": "Your Name",
  "DESCRIPTION": "What the shader renders, in one sentence",
  "ISFVSN": "2.0",
  "CATEGORIES": ["Generator"],
  "INPUTS": [
    {"NAME": "speed", "TYPE": "float", "MIN": 0.0, "MAX": 3.0, "DEFAULT": 1.0, "LABEL": "Speed"},
    {"NAME": "tint", "TYPE": "color", "DEFAULT": [0.4, 0.7, 1.0, 1.0], "LABEL": "Tint"}
  ]
}*/

#ifdef GL_ES
precision highp float;
#endif

void main() {
    vec2 uv = (gl_FragCoord.xy - 0.5 * RENDERSIZE) / RENDERSIZE.y;
    vec3 col = vec3(0.0);
    // ...your shader here...
    gl_FragColor = vec4(col * tint.rgb, 1.0);
}

Built-in uniforms

The runtime injects these automatically — you don't declare them:

For audio-reactive shaders, you also get audioLevel, audioBass, audioMid, audioHigh, audioBeat, sampleFFT(u), and sampleWaveform(u). If your shader reads any of these, set its CATEGORIES to include "Audio Reactive" so users can find it.

The five pitfalls that break shipped shaders

We audited every default shader in the library. These are the bug classes we found — and what to write instead:

1. The atan2 seam

atan(y, x) jumps by 2π across the negative x-axis. If you feed angle / PI into a fractal / voronoi / noise function, every pixel on that ray gets a different coordinate and you see a horizontal seam on the left side of the screen.

Embed the angle on a cylinder instead — cos/sin is C∞ at the boundary:

// BAD — visible seam
tunnelUV = vec2(angle / PI, z);

// GOOD — seamless cylinder embedding
tunnelUV = vec2(cos(angle), sin(angle) + z);

2. Division by a uniform that can hit zero

Sliders with MIN = 0 will eventually sit at zero. Without a clamp you get NaN or Infinity and a flashing ring somewhere in the image.

// GOOD — floor the denominator
c *= 0.2 / max(abs(dd), 0.05);
temp = pow(temp, 1.0 / max(uIntensity, 0.05));

3. Oversampled parametric curves

Torus knots, Moebius strips, oscilloscopes — 100–150 samples render identically to 400 for continuous curves. Default SAMPLES to 128, not 400. You cut per-pixel cost by 2–3× with no visual change.

4. Shadowed built-ins and dead variables

Never name a local dot, mix, length, cos, or reflect — you'll shadow the GLSL built-in and the next edit will silently break. And delete dead code; we found one default shader with four consecutive assignments to a local variable where only the last one was used.

5. Runtime loop bounds

WebGL 1 requires for loop bounds to be compile-time constants. Use a const cap plus an early break:

// GOOD — const upper bound, runtime early-exit
for (int i = 0; i < 30; i++) {
  if (i >= nodeCount) break;
  // ...
}

Performance budget

Target 60 fps at 1080p on a mid-range integrated GPU — that's ~16 ms per frame. Rough per-pixel budgets that stay under the ceiling:

Using your custom shader

The shader library is curated by the Ghost Arcade team — you can't add files to it yourself. But you can use your own shaders in your own projects, right alongside the built-in library. They live in your project's Media Tray, not the global library, so your work travels with the project file.

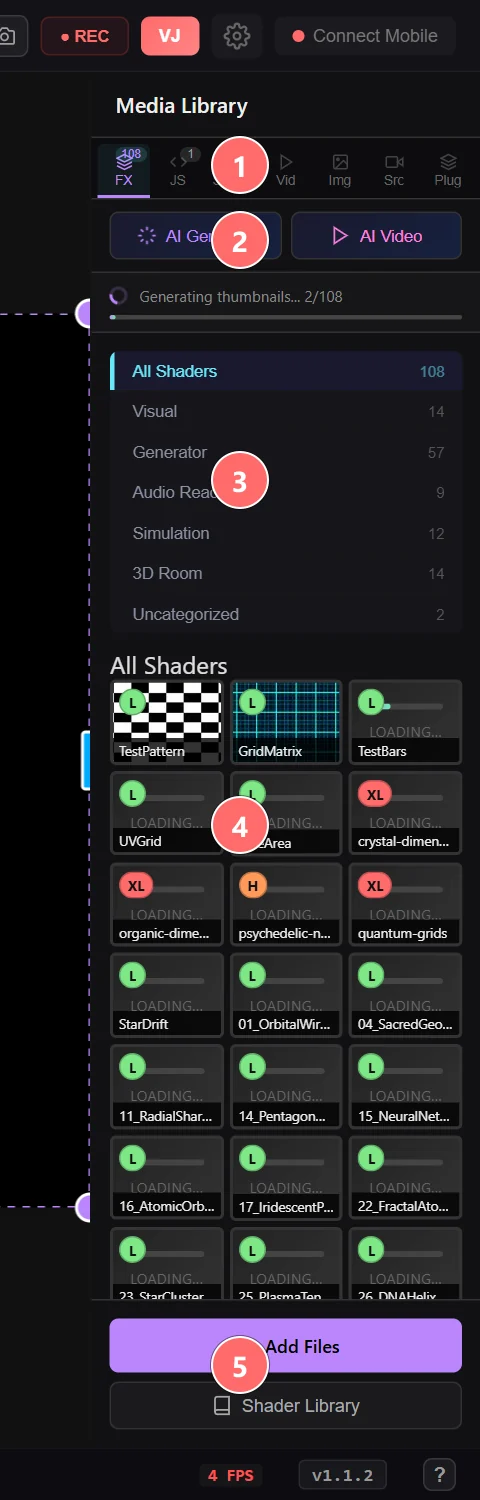

  1. In the Media Tray, click Add Files at the bottom.
  2. Pick one or more .fs or .isf files.
  3. They appear under the Shaders tab in the tray. Drag one onto a layer — or double-click — to apply it, then tweak the sliders the ISF header declared.
  4. Save the project (File → Save). Your custom shaders are embedded in the project file; reopening or sharing the project keeps them intact.

If you've written something that deserves a wider audience, we'd love to see it — reach out through the community forums to share your shader. Selected community shaders may be added to the official curated library in future updates.
